The Applications in Real Time monitor shows the top applications by throughput observed by the Exinda appliance during the last 10 seconds. This report can answer questions such as, “My link is congested; which applications are on my network right now? How much bandwidth is BitTorrent using right now?”

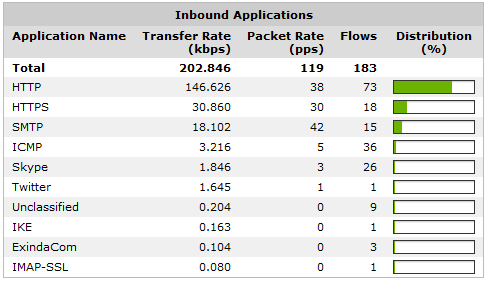

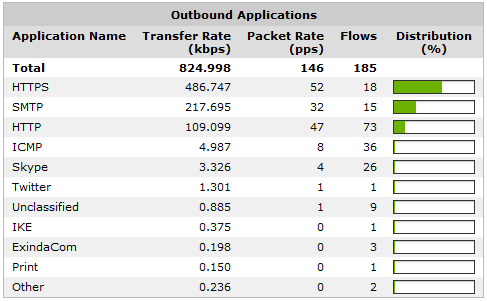

The Applications in Real Time monitor shows inbound application traffic separately from outbound application traffic. The traffic is sorted by transfer rate. The packet rate and number of flows for each application in that 10 second period is also shown. The Distribution percentage shows the proportion of bandwidth consumption of each application relative to all applications. You can set the chart to refresh frequently or infrequently or not at all. Each refresh shows 10 seconds of data.
Where do I find this report?
Go to Monitor > Real Time > Applications.
|
|
|
