Interfaces Packets per Second

The Interfaces Packets per Second monitor shows the packet rate over time for a particular interface or for all interfaces aggregated together. This report can answer questions such as, “Is the packet rate unacceptably high possibly indicating a problem such as a denial of service attack?”

Only the packet rate for outbound traffic is shown. The charts show maximum and average packet rates. The maximum packet rate is determined by looking at 10 second samples of data. The average packet rate is calculated by averaging the packet rate over the time period specified by the granularity. For instance, when looking at a day of traffic, each data point represents 5 minutes of data. The average shows the average packet rate over each 5 minute period. You can better understand the packet rate distribution by adding a percentile marker line. The line shows that the nth percentile of (maximum) packet rate observations exceeds the specified packets per second rate. For instance, if the 95th percentile is at 40,000 pps, then 5 out of 100 packet rate observations appeared above 40,000 pps.

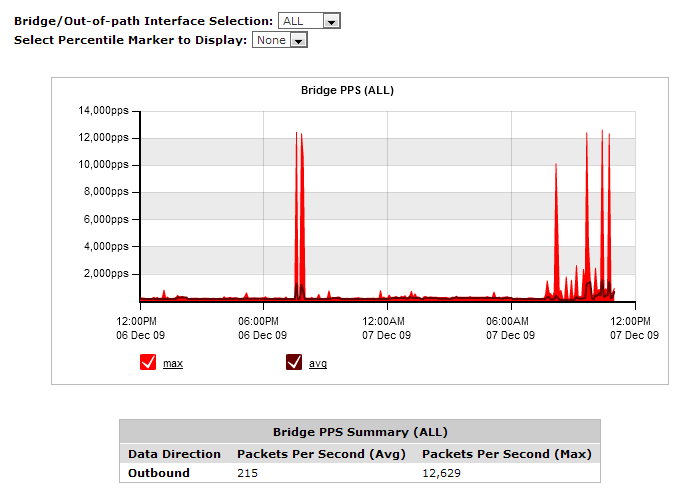

The table at the bottom of the report shows the average packets per second and maximum packets per second transferred out of the WAN-side interface(s) for the selected time period. The values in the table are automatically updated when the interactive flash graphs are manipulated.

	Note Given that this report shows all data on the wire, the report may also include traffic that is not seen on the WAN, such as local LAN broadcasts, etc.

Where do I find this report?

Go to Monitor > Interfaces > Throughput.

To filter the data in the chart by bridge or out-of-path interface

Select the desired bridge (WAN interface), policy-based routing interfaces, or WCCP interface from the WAN/Out-of-path-Interface Selection selector.

To identify which packet rate falls above a specific percentile

Select the desired percentile level from the Select Percentile Marker to Display selector.

How do I interact with the interactive flash time graphs?

• To understand how to get a better look at traffic patterns and to remove clutter on the time graph, see Using Interactive Time Graphs.
• To understand how to set the desired time range for a chart, see Setting the Time Range.
• To understand how to print the report or schedule the report, see Printing and Scheduling Reports.
