Running the Initial Configuration Wizard

The initial configuration wizard will step you through configuring the appliance's interfaces, IP settings, HTTP proxy settings, basic system information, license information, and storage volume. It also provides the option to upgrade the firmware and create the initial set of traffic policies.

1. The Exinda appliance by default will pick up an IP Address from DHCP. The IP Address is available on the management interface.

   	Note If a DHCP address is not picked up, the Exinda defaults to the IP Address 172.14.1.57. Open a web browser and connect to the Web User Interface by typing https://172.14.1.57 in the address field. You must configure the IP Address of your PC to the same subnet as the Exinda appliance, for example, set your IP Address to 172.14.1.58, netmask 255.255.255.0

2. From a web browser go to the following website www.findmyexinda.com. This will download an applet and automatically find the recently installed Exinda.

   Note that findmyexinda.com uses a multicast packet to find local Exinda units, therefore, you need to be on the same physical local LAN for this to work.

3. Click on the Exinda appliance that has been found.
4. Login with username=admin and password=exinda.
5. Select Configuration > Basic Install Wizard to start the configuration wizard .

• Basic Wizard Step 1 - Interfaces

  This screen lists all the system interfaces, as well as reports any problem with the interfaces. You can set interface speed and duplex settings from this screen.

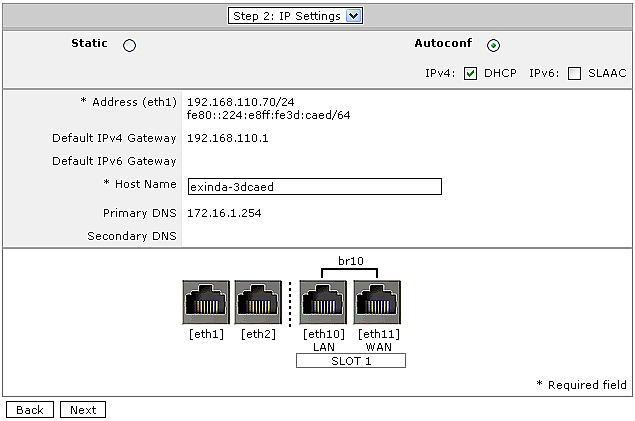

• Basic Wizard Step 2 - IP Settings

  This screen allows you to configure basic network connectivity settings. You can either manually specify these settings or select Autoconf to automatically acquire these settings. The type of auto configuration selected depends on your network. For IPv4 networks select DHCP, for IPv6 use SLAAC.

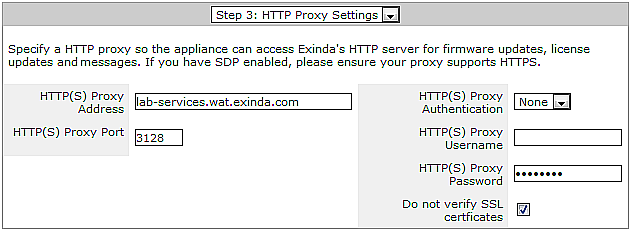

• Basic Wizard Step 3 - HTTP Proxy Settings

  To allow the appliance to access Exinda's HTTP server for firmware updates, license updates, and messages, specify an HTTP proxy. If you have SDP enabled, ensure your proxy supports HTTPS.



• Basic Wizard Step 4 - System

  This screen allows to configure basic system settings.

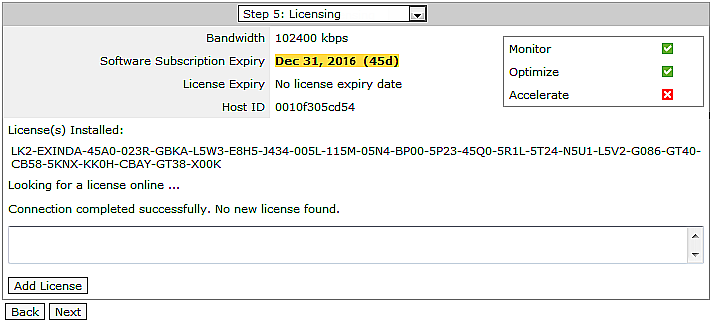

• Basic Wizard Step 5 - Licensing

  This screen allows you to configure the system's license. When you enter the screen, the Exinda appliance attempts to contact the Exinda licensing server on the Internet. If the appliance has Internet connectivity and a new or updated license can be found, it is displayed in the text-box at the bottom of the screen. You can add this license to the system by clicking the Add License button.



• Basic Wizard Step 6 - Storage

  This screen displays the available disks that can be added to the volume group.



• Basic Wizard Step 7 - Firmware

  This screen displays the status of the firmware running on the Exinda appliance. If the appliance has Internet connectivity, the system checks for any newer firmware that may have been released. If a newer firmware image is available, you are asked if you want to download and install it.

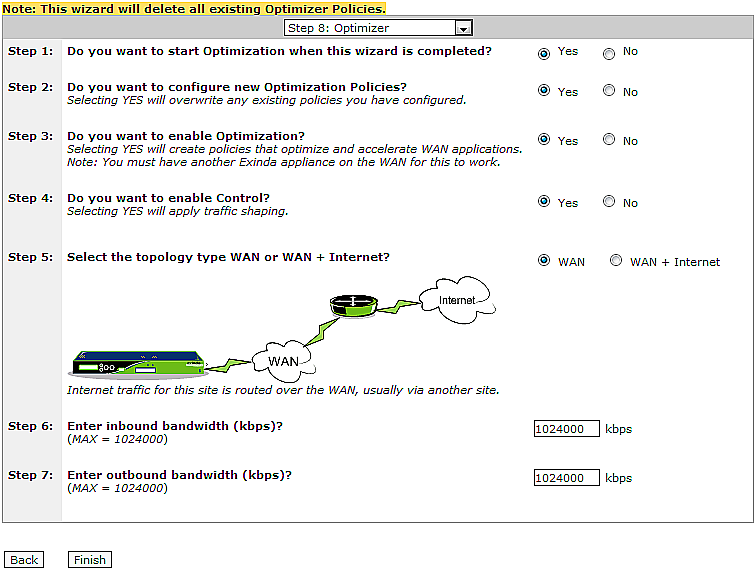

• Basic Wizard Step 8 - Optimization

  The final screen allows you to configure default Optimizer policies.



  For more information about the Optimizer policy wizard, see the Optimizer > Optimizer Wizard page.

	Note Settings on each step are automatically applied when clicking the 'Back' or 'Next' buttons.
