Netflow allows the Exinda appliance to export flow records to 3rd party monitoring devices.
-
Use the form below to configure these Netflow targets.
IP Address
Specify the IP Address of the Netflow target. The Exinda appliance will export Netflow data to this IP Address.
Port
Specify the Port number of the Netflow target. The Exinda appliance currently supports Netflow export on UDP ports.
Version
Specify the Netflow version to export. Current supported versions are v1, v5 and v9.
-

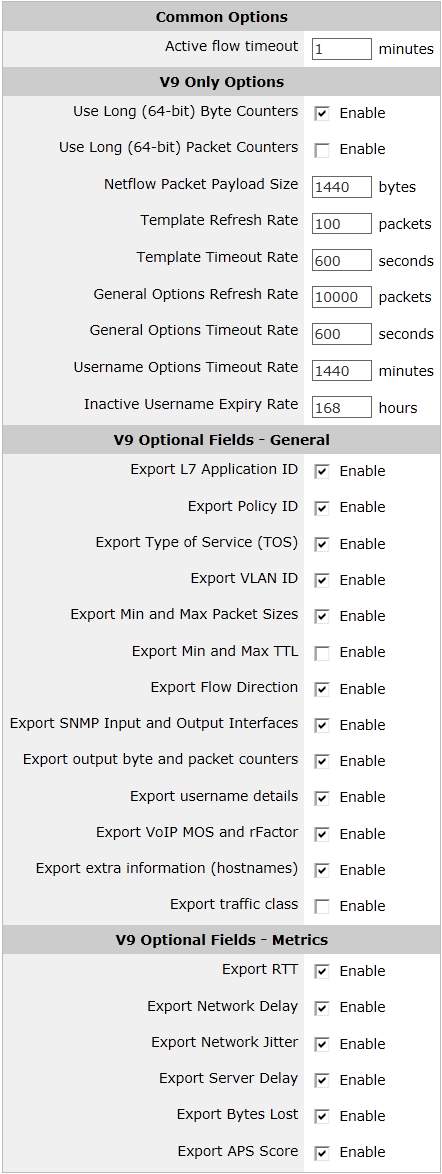

The form below allows customization of the flow records sent by Netflow.
|
Active Flow Timeout |
Specify how often long-term, persistent flows are exported. By default, flows are exported within 10 seconds of the flow terminating (this approach does not work well for long-term or persistent flows). This setting allows you to specify how often these long-term flows should be exported. |
|
Use Long Byte Counters |
Export byte counters as 64bit values instead of 32bit. |
|
Use Long Packet Counters |
Export packet counters as 64bit values instead of 32bit. |
|
Netflow Packet Payload Size |
Set maximum Netflow packet payload size. |
|
Template Refresh Rate |
Configure the maximum number of packets between exporting of templates. |
|
Template Timeout Rate |
Configure the maximum number of seconds between exporting of templates. |
|
Options Refresh Rate |
Configure the maximum number of packets between exporting of options. |
|
Options Timeout Rate |
Configure the maximum number of seconds between exporting of options. |
|
Username Options Timeout |
Configure maximum number of minutes between exporting of username options. |
|
Inactive Username Expiry Rate |
Configure the maximum time to remember inactive usernames. |
|
Export L7 Application ID |
Export Application identification information. The Application ID to Name mappings are exported as an options template. |
|
Export Policy ID |
Export Optimizer Policy IDs and names. |
|
Export Type of Service (TOS) |
Export minimum and maximum Type of Service (TOS). |
|
Export VLAN ID |
Export VLAN identifier. |
|
Export Packet Sizes |
Export minimum and maximum packet sizes. |
|
Export Min and Max TTL |
Export minimum and maximum time-to-live (TTL). |
|
Export Flow Direction |
Export flow direction. |
|
Export SNMP Interfaces |
Export SNMP input and output interfaces. |
|
Export Output Counters |
Export output packet and byte counters, these can be compared to input byte and packet counters to calculate reduction. |
|
Export Username Details |
Export AD usernames. |
|
Export VoIP MoS and rFactor |
Export MoS and rFactor values for VoIP calls. |
|
Export Extra Information |
Exports extra flow information, such as domain name for HTTP flows, published application name for Citrix. |
|
Export traffic class |
Export traffic class. |
|
Export RTT |
Export round trip time (RTT). |
|
Export Network Delay |
Export network delay. |
|
Export Network Jitter |
Export network jitter. |
|
Export Server Delay |
Export server delay. |
|
Export Bytes Lost |
Export lost bytes count. |
|
Export APS Score |
Export APS score. |
