The Real Time Host Health report shows the Retransmitted Bytes, Aborted Connections, Refused Connections, Ignored Connections and Flow Count for each internal and external host monitored by the Exinda appliance.
Display the report in the Exinda Web UI
-
Click Monitor > Real Time and switch to the Host Health tab.

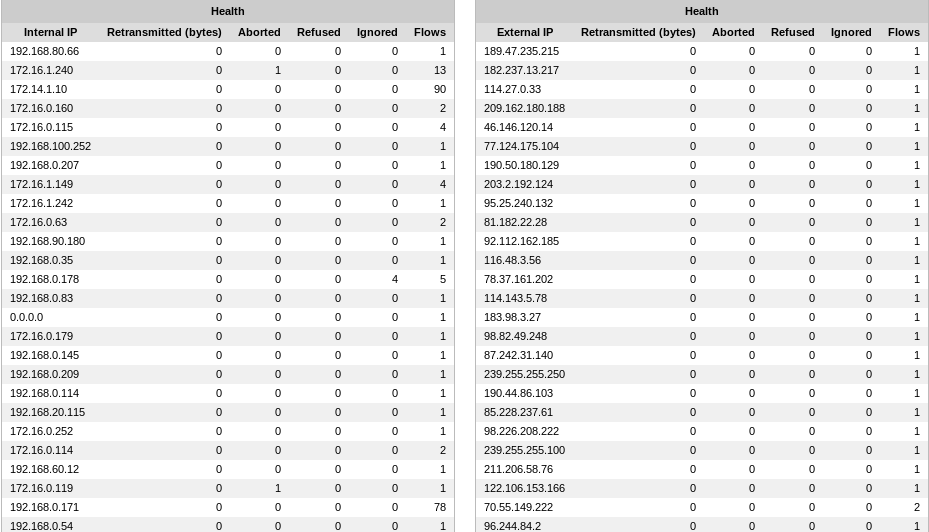

The report appears:
- To change how often the table is refreshed, select an Auto-Refresh Rate from the list.
Display the report in the Exinda CLI
- Click Configuration > System > Tools > Console.
- Type the appliance username and password at the prompts. Do one of the following:
-
To enter privileged EXEC (enable) mode, at the prompt type the following command:
hostname > enable
The hostname # prompt is displayed.
-
To enter configuration (config) mode, at the prompt type the following commands:
hostname # configure terminal
The hostname (config)# prompt is displayed.
-
To display realtime TCP health from the CLI, use the following command:
(config) # show realtime apm hosts

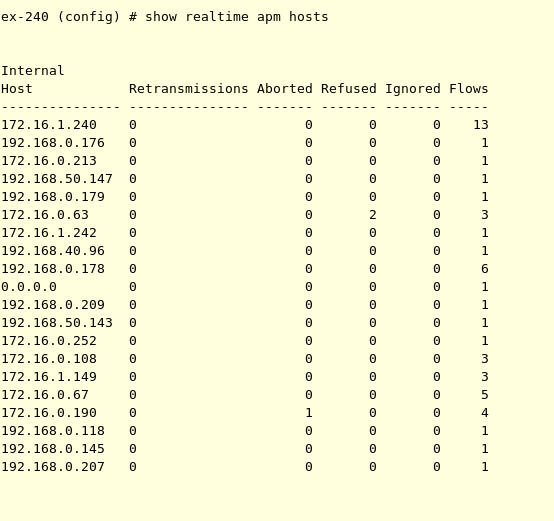

The following results are displayed:
