Configure Exinda Appliance Community

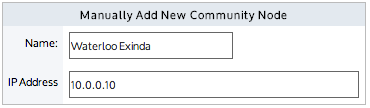

A group of Exinda appliances in a network is referred to as a community. Exinda appliances that are part of the same community can accelerate to and from each other. Generally, Exinda appliances automatically discover each other when attempting application acceleration, however, if an appliance is not automatically discovered, you can manually add the Exinda appliance to the community. When the IP address of a manually added Exinda appliance changes, the community node must be updated as well.

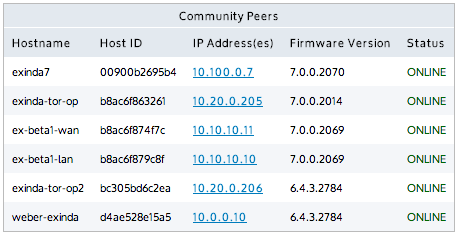

Figure - List of automatically discovered Exinda appliances

	Note The Community service uses port 8017 to communicate between Exinda Appliances. Please ensure this port is open for proper functionality.

Note

The Community service uses port 8017 to communicate between Exinda Appliances. Please ensure this port is open for proper functionality.

	Version Info: In a pre-6.4 version, by default, the community was larger than it needed to be, which caused some inefficiencies. In this case, user-defined community groups allow you to create multiple separate smaller Exinda Communities in the same network. In 6.4 and later versions, appliances automatically join the community of appliances with which they are accelerating. If you want your 6.4 or later appliance to belong to a community of pre-6.4 appliances, you need to configure the community settings to match your pre-6.4 appliances.

Version Info:

In a pre-6.4 version, by default, the community was larger than it needed to be, which caused some inefficiencies. In this case, user-defined community groups allow you to create multiple separate smaller Exinda Communities in the same network.
In 6.4 and later versions, appliances automatically join the community of appliances with which they are accelerating. If you want your 6.4 or later appliance to belong to a community of pre-6.4 appliances, you need to configure the community settings to match your pre-6.4 appliances.

If you want this appliance to join a community that was created for pre-6.4 appliances

Appliances with version 6.4.0 or later do not need to manage communities unless you want a 6.4.0+ appliance to join a community created for a pre-6.4.0 appliance group.

Note that an Exinda appliance can belong to multiple community groups. By default, all appliances belong to the community group with Group ID 0. As a security measure, the Community Group ID can be used like a PIN to restrict access to any other Exinda appliance from joining your community.

E X A M P L E

Consider a network where there are two WAN links (a VPN-based WAN and a MPLS-based WAN), and there are appliances on each link and a data-center appliance that accesses both WAN links. Assume you want:

all Exinda appliances in the VPN-based WAN to accelerate to each other
all Exinda appliances in the MPLS-based WAN to accelerate to each other
prevent the VPN-based Exinda appliances accelerating with the MPLS-based Exinda appliances.

For this scenario, configure the community groups as follows:

Exinda appliances at VPN-based sites: Community Group ID: 10
Exinda appliances at MPLS-based sites: Community Group ID: 20
Exinda appliance at Datacenter Community Group ID: 10 and 20

In the Community Compatibility Settings section, select Support version (pre v6.4.0) Enabled.
Click Apply Changes.
The Community Groups areas are displayed.
To identify the community groups that the appliance can join, in the Add New Community Group ID (pre v6.4.0) section, type the number in the Group ID field.
Click Add New Community Group ID.

The list of groups that this appliance belongs to is presented in the Community Groups (pre v6.4.0) list.
